Joint alignment system is

Wall Insulation and Brick Cladding in ONE





This system includes a routed rigid foam panel

with tongue and groove

and is available in thicknesses from 16 mm till 200 mm

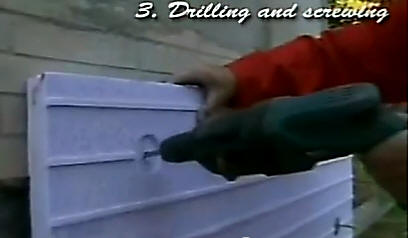

with approved wall plug screws

and insulation holders ensures easy handling, not only for the specialist

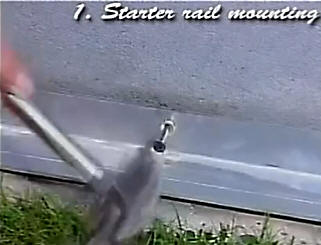

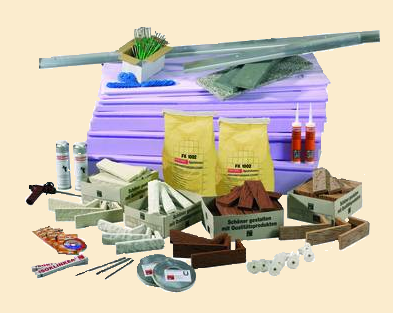

Joint alignment system assembly

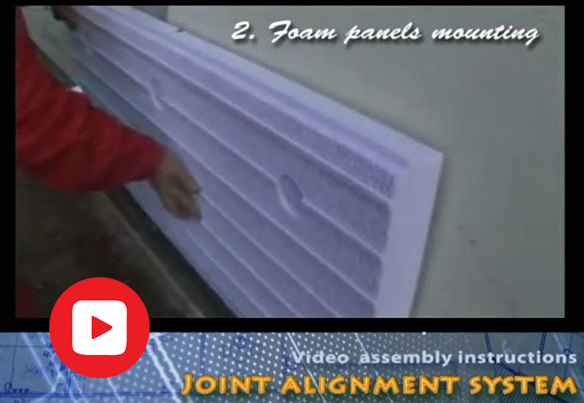

Video of Joint alignment system assembly





For Insulation

The  following materials are available:

Characteristics data
 1.  XPS WLS 035 - 038 PANELS. Stand 05.2010

           Download in pdf format                 or  in Microsoft Word format

  2.  Neopor grey WLS 032 PANELS. Stand 03.2011

         Download in pdf format                   or  in Microsoft Word format

  3.  EPS white WLS 035 PANELS. Stand 04.2011

         Download in pdf format                   or  in Microsoft Word format

  4.  Polyurethan (PUR) WLS 028/027/026 PANELS. Stand 01.2013

         Download in pdf format                  or  in Microsoft Word format

  5.  DEPOSITED PANEL.

         Download in pdf format                or  in Microsoft Word format



WLS is the thermal conductivity of the insulating material.

The lower the value, the better the material insulates.



The brick facing tiles



Red, dappled, yellow, brown, white Brick-facing tiles about 60 different colours are available in various shapes and sizes.

Apart from the color, the surface and the size determine the character  and effect of a brick, the architecture, regional customs and your own taste

determine the choice of the brick, also with regard to its surface properties.






RF-format

The brick format is 240х65х17 mm


The beautiful old traditional format pleasantly calming effect



WDF-format

The brick format is 210х65х20 mm

(hand-molded)





For a special appearance- rustic and elegant



NF-format



The brick format is 240x71x14 mm.





The economical standard size.


The brick is characterized by its dominant effect





DF-format

The brick format is 240х52х17 mm

This slim format has been the most widely used since the

introduction of standardization - good surface effect





Initially the factory prefabricated insulating panels with

special anchors are mounted directly on the old outer wall.

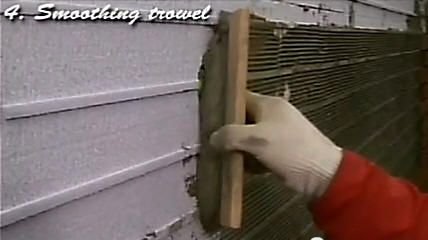

With a special adhesive mortar then the bricks are applied.

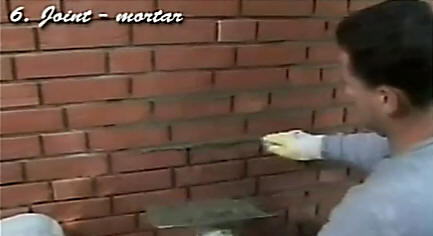

Finally all of the elements are joined manually











Example



Joint Alignment System



Installation

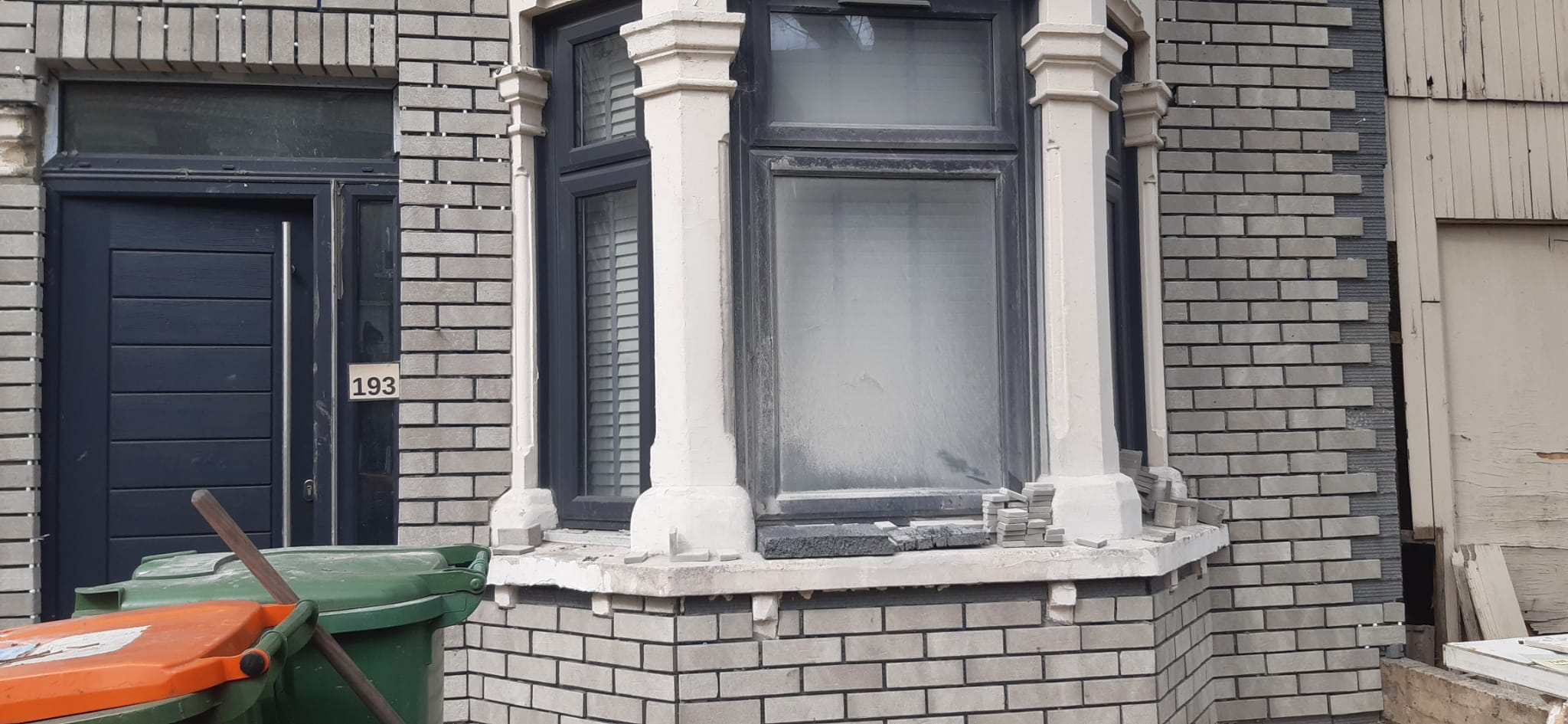

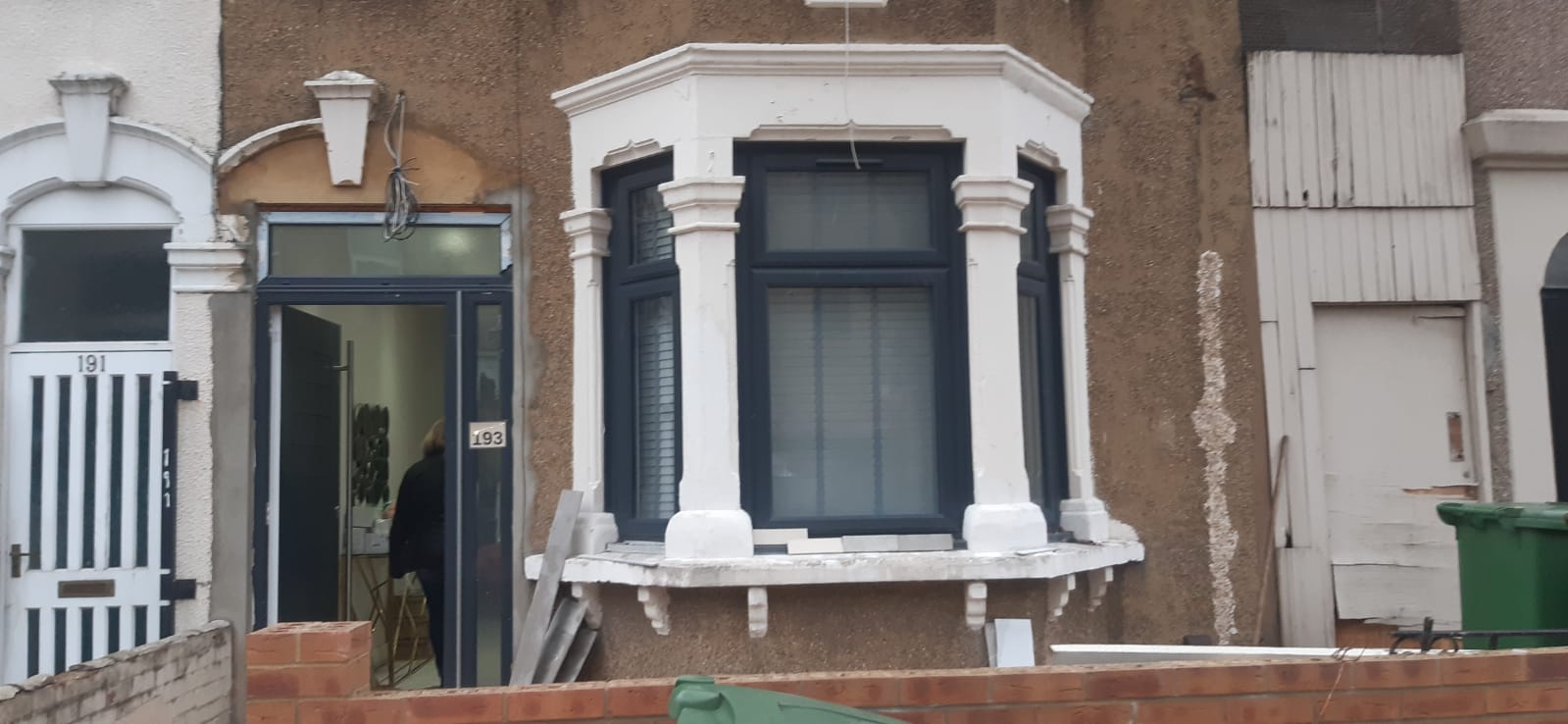

Step 1. Ground floor before

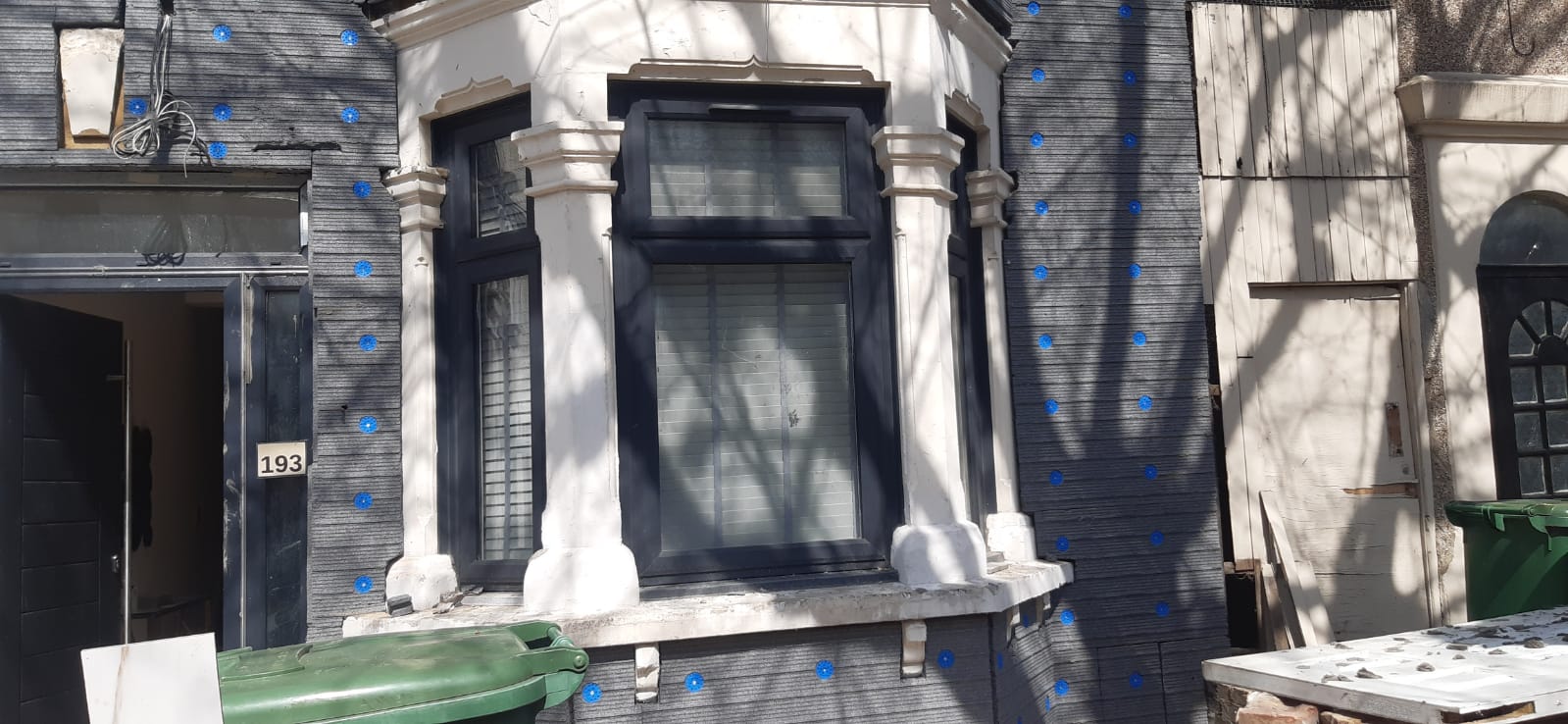

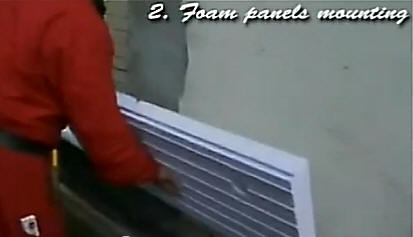

Step 2. The Foam Panels Mounting

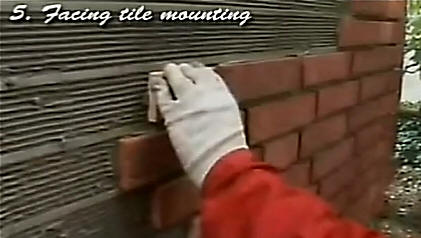

Step 3. The Facing Tiles Mounting

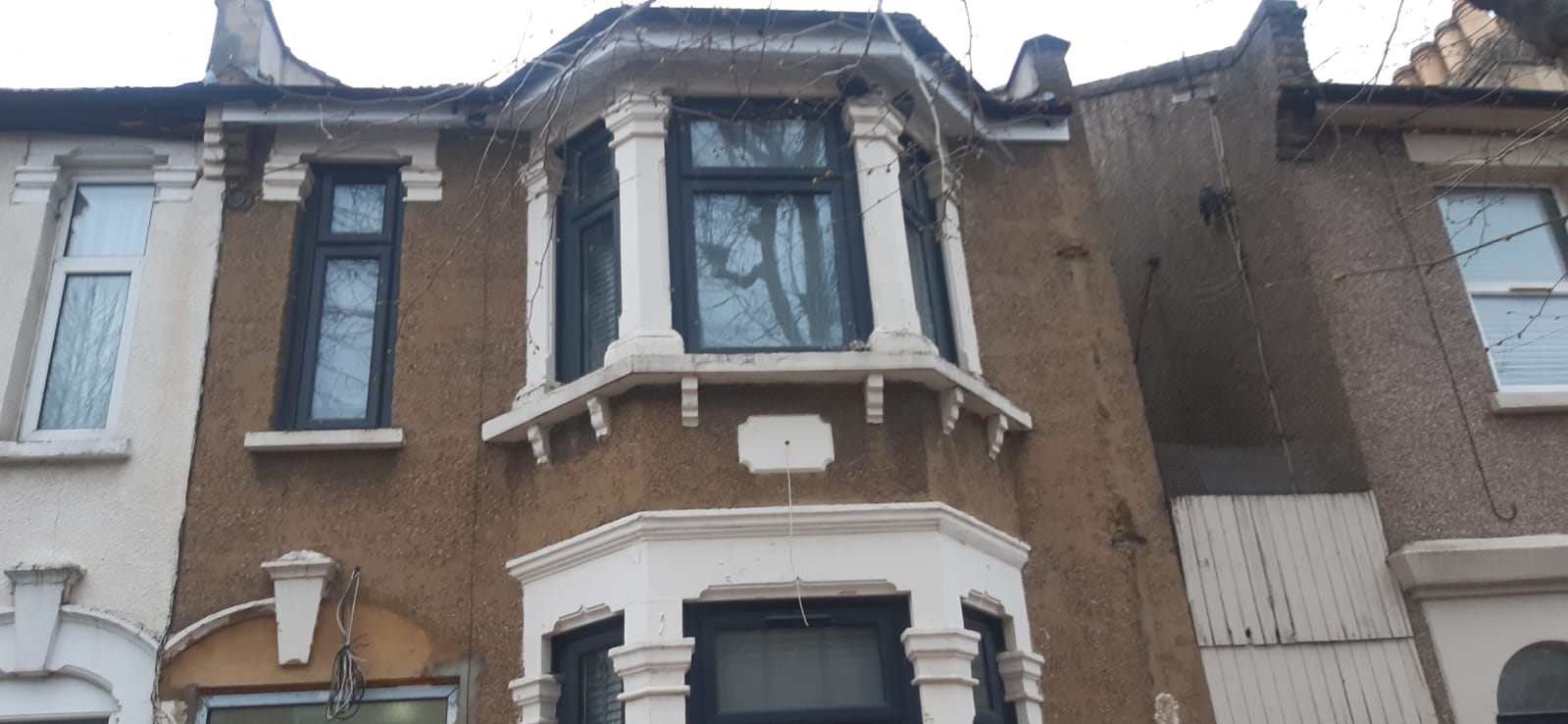

Step 4. First floor before

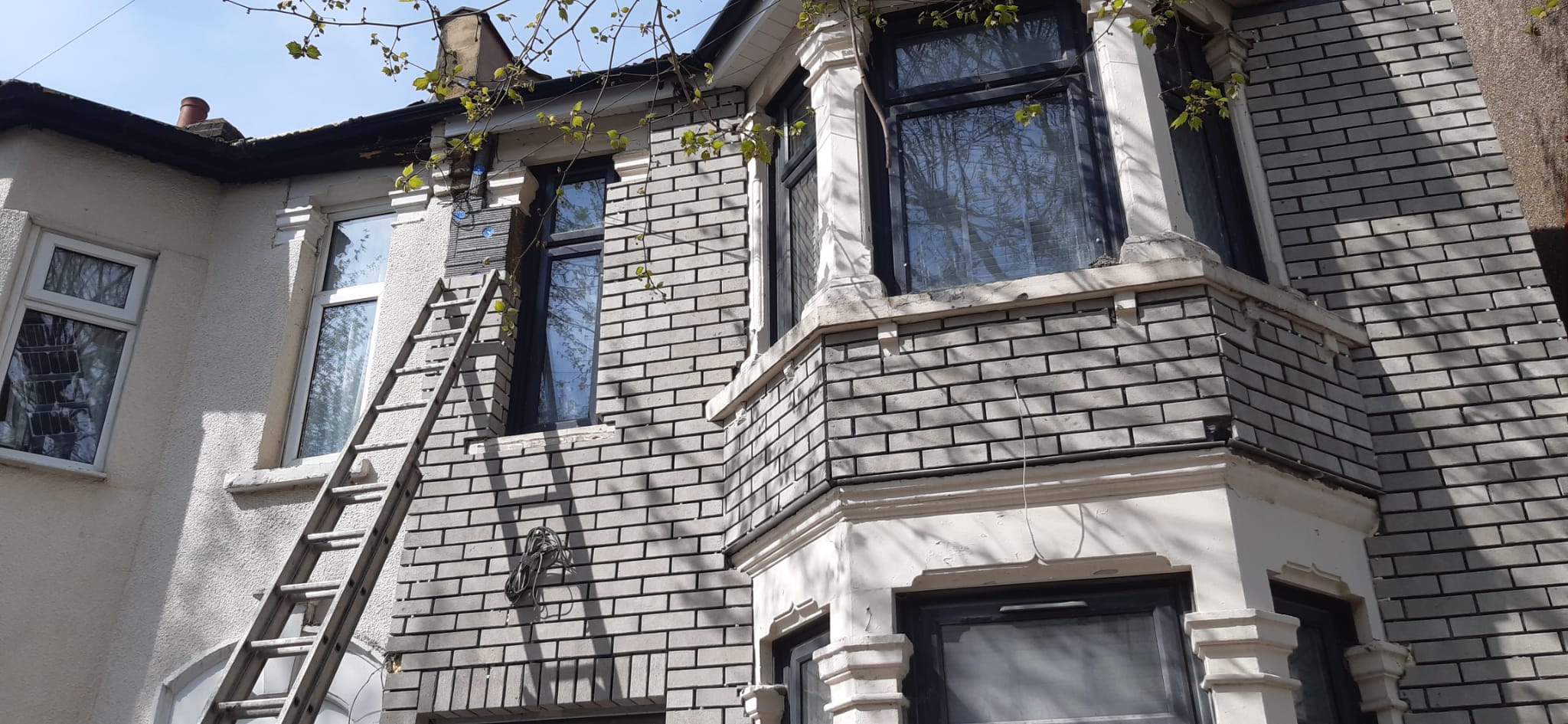

Step 5. Fist floor in work

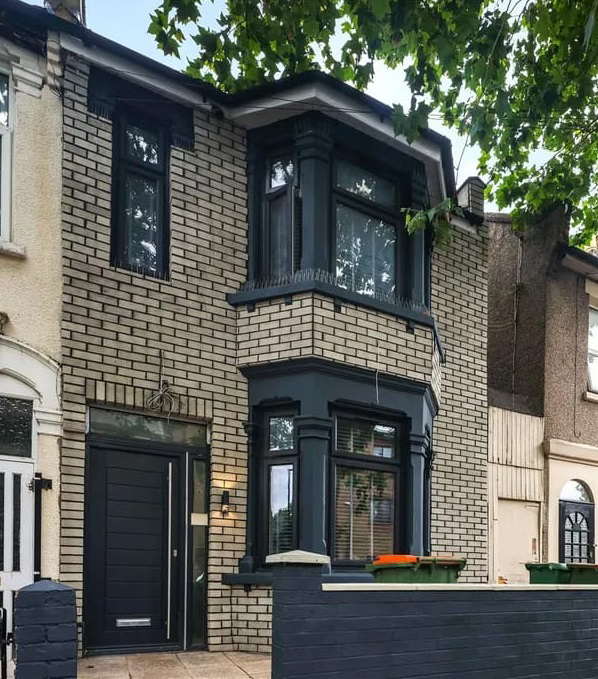

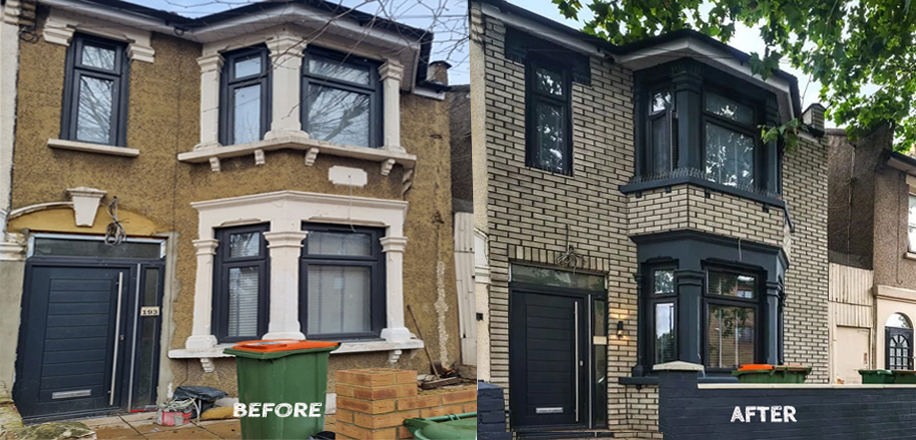

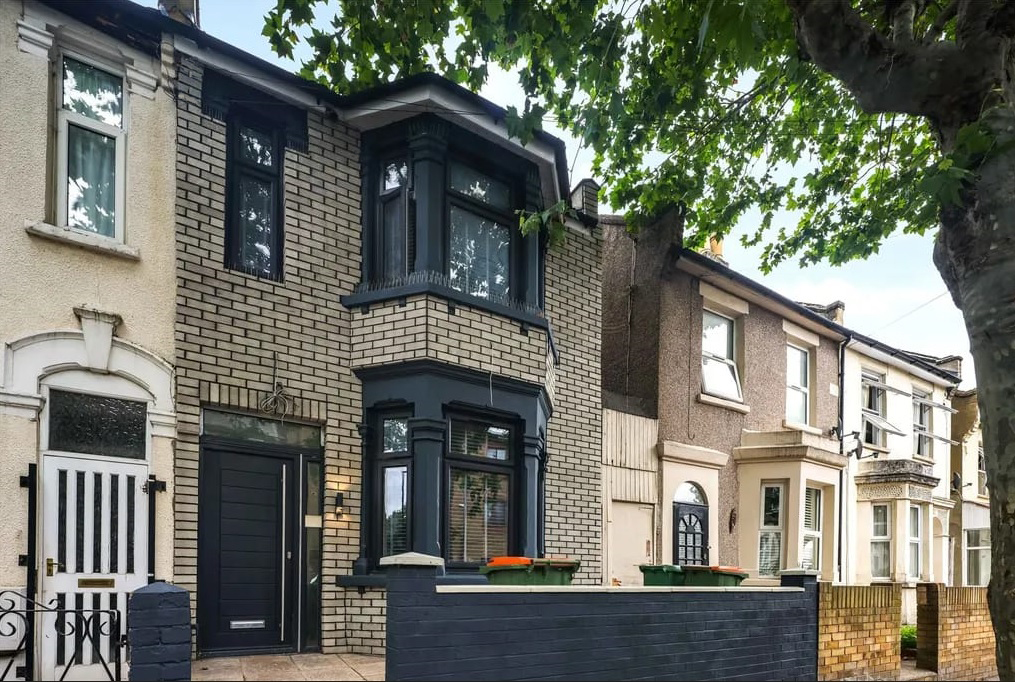

Step 6. Finished job
